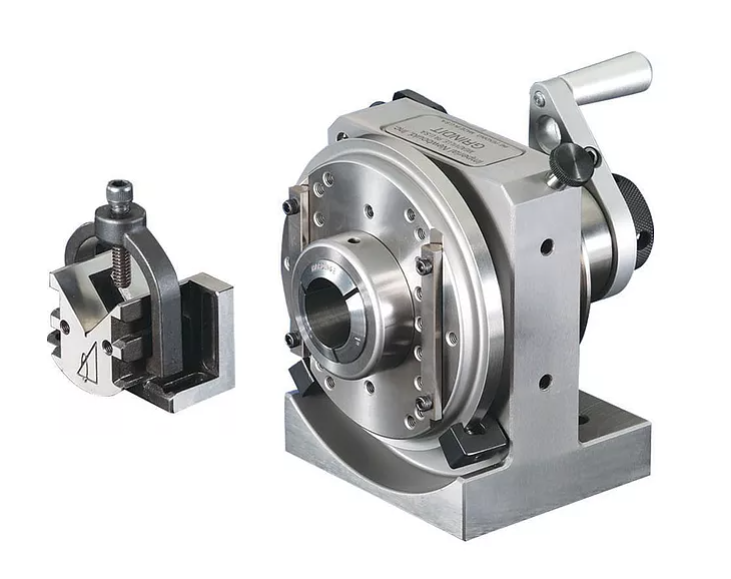

Top Side Shotpin:  Allows for lock-in indexing every 15 degrees, repeatable within 10 arc seconds.

Adjustable Stops:  Two adjustable stops are standard, adding additional stops more than 30 repeatable angles can be used with one setup.

Zero Null Benefit:  Loosening 4 socket head cap screws on rear of the unit allows a +/- 8 degree adjustment from zero setting.

Spindle:  Is guaranteed to 50 millionths TIR for one year from date of purchase; the face plate is guaranteed +/- .0003" square over 3-3/4"

The V-Block:  The V-Block is precisely ground to fit the particular fixture.  A .0004" variance allows sideways maneuvering between the keys.  A 1/4-20" hole at the bottom of the V allows for working without a clamp.

5C Insert:  Standard 5C Insert is ground to fit the particular fixture; the serial number of the Grindit is ground into the insert.

Submersion:  Can be safely submerged in to EDM fluid by attaching an air regulator into the grease port and supplying 2 pounds of air pressure.

Motor:  1/15 hp variable speed, reversible 1800-rpm motor produces a zero to 400-500 rpm spindle speed of the fixture.

Specifications:

Spindle Roundness 50 millionth TIR

Deflection +/- .0003" 3-3/4" Out

Topside Shotpin 10 arc-second repeatability

Center Height 3.004" +/- .002" from bottom

Thru Hole 1-1/4" plus

Weight 14 lbs

Base Size 3-1/2" x 4"

Height 5"

Bottom Holes 2-1/2" centers

Material Available in A-2 or 440C Stainless Steel

V-Block Capacity 1-1/2"

Distance Between V-Block Keys 2.600 + .0002"

V-Block Width 2.600 - .0002"

Available Accessories:

Precision Three Jaw Chuck

4" Magnetic Chuck

Quick Mount Adapter for Magnetic Chuck

Submerge Drive

System,

Cog Belt Drive

Pressurization Kit
